P 180 EVO
PIAGGIO AEROSPACE

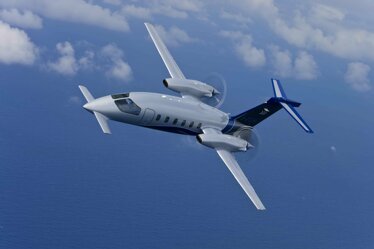

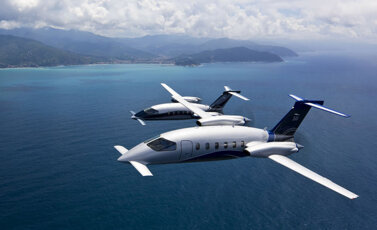

P 180 AVANTI EVO
Avanti EVO is the latest chapter in the story of the aircraft which rewrote the rulebook on aviation elegance and practicality.
Avanti EVO blends the very best of Italian style, peerless craftsmanship, and intelligent thinking to create an aircraft that stands alone for its values.
With greater range, faster climb, reduced fuel costs, a lower noise footprint, added safety systems, and a more luxurious cabin, Avanti EVO is yet another step forward. Its speed exceeds 400 KTAS, faster than many jets and at a fraction of the direct running costs. Add to that a significantly improved service and support network, an innovative new maintenance program that can keep costs under control better than ever, and Avanti EVO stands alone for intelligence and elegance.
PIAGGIO AEROSPACE AVANTI EVO SPECIFICATIONS
EXTERNAL DIMENSIONS
Span 14.345 m47.06 ft
Length 14.408 m47.27 ft
Height 3.980 m13.06 ft
CABIN DIMENSIONS
Height 1.75 m5.74 ft
Width 1.85 m6.07 ft
Length 4.55 m14.92 ft
Max Seating Capacity 8+2 crew
Typical Executive Payload 6+1 crew
BAGGAGE COMPARTMENT
Volume 1.00 m 335 ft3
Length 1.70 m5.58 ft
Maximum Weight 159 Kg350 lb
PRESSURIZATION
Differential 0.62 bar 9.0 psi
Sea Level cabin up to 7,315 m24,000 ft
WEIGHTS
Max Take-off Weight 5,489 Kg 12,100 lb
Max Landing Weight 5,216 Kg 11,500 lb
Max Zero Fuel Weight 4,445 Kg 9, 800 lb
Standard Empty (Shuttle Configuration) 3,561 Kg 7,850 lb
Max Fuel Capacity 1,271 Kg 2,802 lb
Fuel with Max Net Payload 1,066 Kg 2, 350 lb
Max Net Payload 794 Kg 1, 750 lb
Net Payload with Max Fuel 589 Kg 1, 298 lb
Max Fuel Capacity (Increased Range Config.) 1,451 Kg 3, 200 lb
POWERPLANT
2 x Pratt & Whitney Canada PT6A–66B Engines 850 shp/634 kW each (ISA, sea level), at-rated from 1,630 hp
2 x Hartzell ve-scimitar blades low noise Propellers
PERFORMANCE
Maximum Speed (at 31,000ft ISA) 745 km/h 402 KTAS
MMO 0.70 Mach
Max Range (NBAA IFR, Standard Conf.) 2,759 km 1,490 NM
Max Range (NBAA IFR, Increased Range Conf.) 3,278 km 1,770 NM
Service Ceiling 12,497 m 41,000 ft
Rate of Climb (MTOW, 12,100lb) 844 mpm 2,770 fpm
Take-Off Distance (SL, ISA, to clear 50ft) 972 m 3,190 ft
Landing Distance (SL, ISA, 50ft, MLW, no reverse) 1,000 m 3,282 ft
